Creating and validating digital twins from survey data

01 What is being tested?

A survey digital twin is an LLM stand-in for one respondent. Its prompt contains approved facts about that person—other survey answers and readable covariates—but not the answer it must predict. The model returns probabilities over the held-out question’s options.

02 Study design before model calls

Our worked example uses a fixed excerpt of 100 respondents from Pew Research Center’s American Trends Panel Wave 158. The survey asked whether people favored or opposed six climate-policy proposals. We will hide each person’s answer about taxing corporations based on their carbon emissions and try to predict it from their other five policy answers.

03 Installation and orientation

This tutorial assumes you have cloned the zwill repository and are standing at its top level—the directory containing README.md, pyproject.toml, and examples/. A deidentified 100-person teaching excerpt is already present under examples/pew_w158_tutorial/, so every data path below can be copied exactly.

git clone https://github.com/expectedparrot/zwill.git
cd zwill
pip install -e ".[conditional-baseline]"

zwill guide
zwill next

The conditional-baseline extra installs XGBoost and a local sentence-transformers embedding option. zwill guide is the source of truth for the complete workflow. zwill next inspects local state and returns the next command after every completed stage.

Where files go: zwill places relative report and export paths beneath its default output root, zwill_work/. Thus --path survey-profile.html writes zwill_work/survey-profile.html, and --out report_out/validation writes zwill_work/report_out/validation/. EDSL interchange files such as jobs.ep and results.ep stay at the paths written in the command so the external ep CLI can find them. Set ZWILL_OUT or use zwill init --output-dir to choose another output root.

Model runs require an EXPECTED_PARROT_API_KEY in a nearby .env. If you do not have one, sign up with Expected Parrot. zwill prepares durable EDSL .ep job packages; EDSL’s ep CLI runs them and writes a Results package. This keeps credentials, remote execution, waiting, and retries in the inference tool rather than the validation tool.

04 Ingest the Pew survey excerpt

The excerpt contains six questions, 100 deidentified respondents with survey weights, and 600 observed answers. Source response codes are expanded to the canonical labels Favor and Oppose. Coded demographic fields were deliberately omitted because their codebook is not bundled here; neither readers nor models should be asked to guess what opaque codes mean.

Create zwill’s local project database and the empty survey record that later commands will address.

zwill init
zwill survey create --name pew_w158

Retain the source evidence

A trustworthy analysis keeps source and provenance notes beside the normalized records. We retain this material both for auditability and so an agent can reason over the original study context later when normalized rows alone are insufficient. raw add copies the note into managed state and records its hash, title, type, and original path; it does not automatically place the text into every model prompt.

zwill raw add --survey pew_w158 --id pew_w158_excerpt \
  --input-path examples/pew_w158_tutorial/source.md \
  --kind documentation \
  --title "Pew American Trends Panel Wave 158 excerpt"

The excerpt is included for reproducible teaching, criticism, and methodological validation. Before publishing a substantive analysis, consult Pew Research Center’s Wave 158 dataset page, survey methodology, and linked questionnaire and access terms. Pew Research Center bears no responsibility for this tutorial’s analysis or interpretations.

Add one question, respondent, and answer

Before bulk import, it helps to see the three connected records directly. The question establishes wording and legal options; the respondent establishes an ID and survey weight; the answer links that person to one declared option.

Use a disposable survey name for this small manual demonstration so the complete import below remains directly runnable.

zwill survey create --name pew_w158_manual

zwill question add --survey pew_w158_manual \
  --question-name carbon_tax \
  --question-type multiple_choice \
  --question-text "Do you favor or oppose taxing corporations based on the amount of carbon emissions they produce?" \
  --question-option Favor --question-option Oppose \
  --role survey_item --source-raw pew_w158_excerpt \
  --source-note "Wave 158 CCPOLICY battery item b"

zwill respondent add --survey pew_w158_manual \
  --respondent-id w158_ccpolicy_100314 \
  --weight 0.4510313485401432 \
  --source-raw pew_w158_excerpt

zwill answer add --survey pew_w158_manual \
  --respondent-id w158_ccpolicy_100314 \
  --question carbon_tax --answer Favor

The three kinds of normalized record

Public-use microdata usually arrives as one wide row per respondent. zwill separates that table into three JSON Lines files so its assumptions can be checked explicitly.

JSONL stores one complete JSON object per line without a surrounding array. Representative lines from the bundled files look like this:

{"question_name":"carbon_tax","question_type":"multiple_choice","question_text":"Do you favor or oppose ... taxing corporations based on the amount of carbon emissions they produce","question_options":["Favor","Oppose"],"role":"survey_item","source":{"raw_id":"pew_w158_excerpt","note":"Source codes expanded through the metadata codebook."}}

{"respondent_id":"w158_ccpolicy_100314","weight":0.4510313485401432,"source":{"raw_id":"pew_w158_excerpt","note":"Deidentified source respondent."}}

{"respondent_id":"w158_ccpolicy_100314","question":"carbon_tax","answer":"Favor"}

Import the complete 100-person excerpt

The manual records went into pew_w158_manual; the empty pew_w158 survey created at the start is therefore still ready for the complete import. Import all six questions, 100 respondents, and 600 answers:

zwill question import --survey pew_w158 \
  --input-path examples/pew_w158_tutorial/questions.jsonl
zwill respondent import --survey pew_w158 \
  --input-path examples/pew_w158_tutorial/respondents.jsonl
zwill answer import --survey pew_w158 \
  --input-path examples/pew_w158_tutorial/answers.jsonl

zwill next --survey pew_w158

Import is a validation boundary, not a best-effort conversion. Unknown respondents, undeclared questions, and illegal options are reported rather than silently changing the survey. Because the excerpt is complete by construction, every respondent should have six accepted answers and there should be no open quarantine issues.

05 Inspect, then commit observed truth

Run each command separately and read what it returns. Start with project status to confirm that the expected records arrived and that the survey has not yet been committed.

zwill status

Output:

{
  "command": "zwill status",
  "status": "ok",
  "data": {
    "project": "default",
    "surveys": [{
      "name": "pew_w158",
      "status": "draft",
      "raw_files": 1,
      "questions": 6,
      "respondents": 100,
      "answers": 600,
      "open_quarantine_issues": 0,
      "committed": false
    }]
  },
  "next_steps": ["zwill commit --survey pew_w158"]
}

Next inspect the respondent-by-question table. This is the fastest way to catch shifted columns, untranslated codes, or unexpected missing values.

zwill table --survey pew_w158 --limit 5

Output shape:

                              pew_w158 answers
┏━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┳━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ respondent_id ┃ tree_planting ┃ carbon_tax ┃ carbon_captu… ┃ zero_carbon_… ┃ methane_leaks ┃ home_effici… ┃
┡━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━╇━━━━━━━━━━━━╇━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ w158_…_100314 │ Favor         │ Favor      │ Favor         │ Favor         │ Favor         │ Favor         │
│ w158_…_100363 │ Favor         │ Favor      │ Favor         │ Oppose        │ Favor         │ Favor         │
│ w158_…_100637 │ Favor         │ Oppose     │ Oppose        │ Oppose        │ Favor         │ Oppose        │
└───────────────┴───────────────┴────────────┴───────────────┴───────────────┴───────────────┴───────────────┘

Create a fuller HTML profile to inspect exact wording, weights, missingness, and weighted response distributions.

zwill survey report --survey pew_w158 --format html \
  --path survey-profile.html

The response reports the written path and the six-question, 100-respondent, 600-answer dimensions. Open zwill_work/survey-profile.html before committing and verify that every item is binary Favor/Oppose and has 100 observed responses.

commit freezes the respondents and truth marginals used later for scoring. It is not merely a save button.

zwill commit --survey pew_w158

Output:

{
  "command": "zwill commit",
  "status": "ok",
  "data": {
    "survey": "pew_w158",
    "respondent_count": 100,
    "question_count": 6,
    "answer_count": 600,
    "truth_marginal_count": 6
  }
}

Now ask zwill what stage follows from the committed state:

zwill next --survey pew_w158

It reports run_twins because the observed truth is committed but no held-out twin run has been imported yet.

06 Establish the one-shot marginal

Before constructing person-specific twins, ask a model for the population distribution of carbon_tax. This one-shot task contains the question and its two legal options but no respondent. It tests whether the model can approximate aggregate opinion from general knowledge alone.

1. Build the probability job

zwill edsl build --survey pew_w158 --target probability-job \
  --questions carbon_tax --model openai:gpt-5.5 \
  --path one_shot_jobs.ep

This creates the local execution specification. It does not contact the model.

2. Inspect the job

ep inspect one_shot_jobs.ep

Output:

{
  "status": "ok",
  "data": {
    "object_type": "Jobs",
    "length": 1,
    "question_count": 1,
    "question_names": ["response_probabilities"],
    "agent_count": 0,
    "scenario_count": 1,
    "model_count": 1
  },
  "warnings": []
}

There is one scenario because this is one population-level question, not 100 respondent agents. Inspection lets you catch the wrong target, model, or job size before paying for inference.

3. Run it with EDSL

ep run one_shot_jobs.ep --output one_shot_results.ep

The ep CLI performs remote inference and stores the completed EDSL Results object at the requested path.

4. Import the result

zwill prob-results import --survey pew_w158 \
  --input-path one_shot_results.ep

The tutorial run imported one of one rows with no issues and cost approximately $0.03. Its response returned data.job_id: a4399bc71f1b07e7. Your run receives its own ID; copy it wherever the tutorial shows <probability_job_id>.

5. Plot predicted versus observed marginals

A marginal is the overall share choosing each option, without retaining which respondent chose it. In this excerpt, 62 of 100 respondents favored the carbon tax and 38 opposed it. After applying the bundled survey weights, the observed shares are 60.8% Favor and 39.2% Oppose.

Zwill aligns the two probabilities returned by the language model with the ingested canonical options Favor and Oppose, then plots them beside those weighted observed shares:

zwill prob-results report --survey pew_w158 \
  --job-id <probability_job_id> --format svg \
  --path one-shot-marginals.svg

Open your generated zwill_work/one-shot-marginals.svg. The observed bars come from committed microdata; predicted bars come from the imported model result. This run showed useful population-level knowledge, but it does not establish that the model can distinguish one respondent from another.

07 Run held-out predictions

We now move from “Can a model guess the aggregate split?” to “Can it assign better probabilities to each real person?” The committed survey already contains every respondent’s carbon_tax answer. Zwill keeps that answer locally for scoring but removes it from the scenario sent to the model.

Write and review the validation plan

Create a reusable specification for the run: the held-out target, permitted context, respondents, model, and primary metric. The tutorial includes all 100 excerpt respondents, so no sampling or outcome-based stratification is needed.

zwill twin-experiment init-plan \
  --survey pew_w158 \
  --plan-id carbon_tax_v1 \
  --heldout-questions carbon_tax \
  --context-questions tree_planting,carbon_capture_credit,zero_carbon_power,methane_leaks,home_efficiency_credit \
  --model openai:gpt-5.5 --primary-metric nll \
  --path carbon_tax_v1.json

The response reports prediction_count_estimate: 100 and writes the plan beneath zwill’s output root as zwill_work/carbon_tax_v1.json. Validation checks question names, context policy, arms, and the prediction-count calculation without approving or running anything:

zwill twin-experiment validate \
  --input-path zwill_work/carbon_tax_v1.json

Expected result: status: ok, no validation errors, one held-out question, one arm, one model, and an estimated 100 predictions. Treat any error or unexpected count as a stop condition.

Read the plan itself before approving it. Confirm that carbon_tax is the only held-out target, precisely five different questions are context, all 100 eligible respondents are included, the model is intended, and the estimate is 100 calls.

zwill twin-experiment approve \
  --input-path zwill_work/carbon_tax_v1.json \
  --approved-by tutorial_reader \
  --note "Approved one target, five context questions, all 100 eligible respondents, one model, and NLL as the primary metric."

Approval records who reviewed which design and when. It is evidence of a deliberate specification, not a claim that the design is scientifically sufficient.

Expected result: the response shows approval.approved: true, approved_by: tutorial_reader, the review note, and the unchanged 100-prediction estimate. The command updates the plan file in place, so export-plan below reads the approved version.

Export and inspect the twin job

zwill twin-experiment export-plan \
  --input-path zwill_work/carbon_tax_v1.json \
  --output-dir carbon_tax_v1_jobs

ls carbon_tax_v1_jobs

The directory contains manifest.json plus an EDSL Jobs package whose generated name begins 01_baseline_ and ends _jobs.ep. The manifest maps that path to the approved arm and records the expected 100 predictions. Substitute the actual filename below:

ep inspect carbon_tax_v1_jobs/<jobs.ep>

Expected inspection: one EDSL probability question, 100 scenarios, one model, and therefore 100 runnable jobs. If those counts differ, stop and fix the plan rather than running an unexpectedly large or incorrectly scoped package.

Run with EDSL and import

ep run carbon_tax_v1_jobs/<jobs.ep> \
  --output carbon_tax_twin_results.ep

zwill twin-results import --survey pew_w158 \
  --input-path carbon_tax_twin_results.ep

The completed tutorial run produced 100 of 100 interviews with no exceptions. Import extracted all 100 predictions with zero issues, returned job_id: f87aa97344addd4a, and reported a total model cost of $1.0234. Your run receives its own ID; copy it into <twin_job_id>. Investigate and retry malformed rows instead of silently analyzing a selective subset.

08 Audit the prompts before scoring

Audit at least one imported run before looking at its performance. This order matters: inspect the construction before a promising score can make you more willing to excuse leakage or an unintended prompt. The run report exposes construction metadata, prompt templates, rendered scenarios, raw responses, malformed rows, and import issues.

zwill twin-results run-report --survey pew_w158 \
  --job-id <twin_job_id> --format html --path twin-audit.html

Open zwill_work/twin-audit.html and inspect what was actually sent to the model. In particular, confirm that each scenario contains the five approved policy answers but not that respondent’s carbon_tax answer, the weighted target marginal, or any other target-revealing material.

The command response confirms the written HTML path and audited job ID. The page should report 100 imported rows, zero import issues, the approved construction metadata, and rendered examples containing five context answers. Record any discrepancy rather than relying only on the score tables.

This manual prompt inspection checks the study’s construction. The statistical leakage audit in the validation bundle provides a complementary check for unusually strong context–target relationships. Both must be clean before performance comparisons are credible.

09 Score held-out answers

With the construction audit complete, inspect which artifact was imported and then score its person-specific probabilities against the answers retained locally.

Inventory the imported run

zwill twin-study list --survey pew_w158

The returned table should show one imported job, 100 rows, zero issues, carbon_tax as the held-out question, and the model you ran. This is the quickest check that zwill is about to score the intended artifact.

job_id            rows  issues  heldout_questions  models
f87aa97344addd4a  100   0       carbon_tax         openai:gpt-5.5

Read the respondent-level twin report

zwill twin-results report --survey pew_w158 \
  --job-id <twin_job_id>

The command returns two tables with different purposes. The first is a case-by-case twin report: one row for each respondent’s hidden answer.

                              pew_w158 digital twin report
┏━━━━━━━━━━━━┳━━━━━━━━━━━━┳━━━━━━━━┳━━━━━━━━━━━━━━━━┳━━━━━━━━━━━┳━━━━━━━━━┳━━━━━━━━━━━┳━━━━━━━┳━━━━━━━━┳━━━━━━┓
┃ respondent ┃ heldout    ┃ actual ┃ model          ┃ p(actual) ┃ uniform ┃ empirical ┃ nll   ┃ brier  ┃ top1 ┃
┡━━━━━━━━━━━━╇━━━━━━━━━━━━╇━━━━━━━━╇━━━━━━━━━━━━━━━━╇━━━━━━━━━━━╇━━━━━━━━━╇━━━━━━━━━━━╇━━━━━━━╇━━━━━━━━╇━━━━━━┩
│ …100637    │ carbon_tax │ Oppose │ openai:gpt-5.5 │ 0.820     │ 0.500   │ 0.392     │ 0.198 │ 0.065  │ 1    │
│ …108592    │ carbon_tax │ Favor  │ openai:gpt-5.5 │ 0.900     │ 0.500   │ 0.608     │ 0.105 │ 0.020  │ 1    │
│ …          │ …          │ …      │ …              │ …         │ …       │ …         │ …     │ …      │ …    │
└────────────┴────────────┴────────┴────────────────┴───────────┴─────────┴───────────┴───────┴────────┴──────┘

What these two respondents show

Respondent …100637 opposed the carbon tax. Their other answers were mixed but mostly skeptical of the related policy proposals: they opposed the carbon-capture credit, zero-carbon power requirement, and home-efficiency credit, while favoring tree planting and methane-leak rules. The twin assigned Oppose probability 0.82. That is substantially more informative than the empirical marginal, which assigns only 0.392 to Oppose. The resulting NLL is just -log(0.82) = 0.198, the Brier score is 2 × (1 - 0.82)² = 0.065, and top-1 is correct.

Respondent …108592 favored all five context policies and also favored the held-out carbon tax. The twin assigned the observed answer probability 0.90, compared with 0.608 from the weighted empirical marginal. Its NLL is therefore 0.105 and its Brier score is 0.020. This is the intuitive behavior we want from a person-specific model: move away from the population average when that respondent’s permitted answers provide relevant evidence.

Read the aggregate model summary

The second table averages those case-level scores over all usable respondents. It answers how the run performed overall, while the first table shows which people generated that average.

                              model summary
┏━━━━━━━━━━━━━━━━┳━━━━━━┳━━━━━━━━━━━┳━━━━━━━━━━━┳━━━━━━━━━━━━━┳━━━━━━━┳━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┳━━━━━━━┳━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━┳━━━━━━┓
┃ model          ┃ rows ┃ p(actual) ┃ uniform p ┃ empirical p ┃ nll   ┃ uniform nll ┃ empirical nll ┃ brier ┃ uniform brier ┃ empirical brier ┃ top1 ┃
┡━━━━━━━━━━━━━━━━╇━━━━━━╇━━━━━━━━━━━╇━━━━━━━━━━━╇━━━━━━━━━━━━━╇━━━━━━━╇━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━╇━━━━━━━╇━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━╇━━━━━━┩
│ openai:gpt-5.5 │ 100  │ 0.690     │ 0.500     │ 0.523       │ 0.513 │ 0.693       │ 0.670         │ 0.329 │ 0.500         │ 0.477           │ 0.762│
└────────────────┴──────┴───────────┴───────────┴─────────────┴───────┴─────────────┴───────────────┴───────┴───────────────┴─────────────────┴──────┘

These are the weighted results from the completed tutorial run. The twin beat uniform and the weighted empirical-marginal oracle on mean NLL: 0.513 versus 0.693 and 0.670 respectively. Its weighted top-1 accuracy was 76.2%. Those comparisons are encouraging, but XGBoost is the more demanding respondent-conditioned benchmark.

Write reusable reports and aggregate diagnostics

zwill twin-results report --survey pew_w158 \
  --job-id <twin_job_id> --format html --view full \
  --path twin-results.html \
  --calibration-svg-path twin-calibration.svg

zwill twin-results report --survey pew_w158 \
  --job-id <twin_job_id> --format csv \
  --path twin-results.csv

zwill twin-results marginal-diagnostics --survey pew_w158 \
  --job-id <twin_job_id> \
  --target probability-job \
  --target-job-id <probability_job_id> \
  --format svg --path twin-vs-one-shot-marginals.svg

The HTML supports visual inspection, the CSV provides one scored row per respondent, and twin-calibration.svg is a reusable reliability chart: points on the diagonal are calibrated, while points below it indicate overconfidence. Marginal diagnostics compare the average of 100 person-specific distributions with the one-shot population prediction; the SVG makes the option-by-option gaps visible. Those aggregate comparisons complement—but cannot replace—the respondent-level scores.

What marginal diagnostics returns: the selected twin and one-shot job IDs, aligned option labels, the mean twin-implied distribution, the one-shot distribution, and distance measures between them. A small distance means the two methods agree about the aggregate; it says nothing by itself about matching individuals.

10 Compare the twins with XGBoost

Now ask whether the language-model twins add predictive value beyond a cheaper conventional model. This is a separate question from prompt auditing: a perfectly non-leaky twin can still perform no better than an ordinary supervised baseline.

Fit the conditional XGBoost baseline

Beating uniform probabilities is a weak test. A useful digital twin should also beat a conventional supervised learner given comparable respondent information. twin-validate therefore fits zwill’s conditional XGBoost baseline. It embeds the question texts and each question–option pair, represents each respondent by their non-held-out selections, and learns how those semantic features predict an option.

The fit is leave-one-question-out across survey items. For carbon_tax, XGBoost trains on the 100 respondents’ labeled rows from the other five questions—1,000 candidate-option training rows for five binary items. The target question’s own answers and marginal never enter training. It then transfers what it learned across questions to predict Favor/Oppose for the same 100 people scored by the language-model job, making the comparison paired.

zwill twin-validate --survey pew_w158 \
  --jobs <twin_job_id> --out report_out/validation \
  --embedder edsl --require-baseline \
  --n-boot 2000 --seed 42

--embedder edsl reproduces this tutorial run by obtaining text-embedding-3-small vectors through Expected Parrot. --require-baseline makes validation fail rather than quietly omit XGBoost if embedding or fitting cannot complete. For an API-free run, use --embedder sentence-transformers; changing the embeddings can change the baseline and must be recorded as a different specification.

On success, the baseline step reports model_type: xgboost, training_rows: 1000, prediction_rows: 100, and scored_questions: ["carbon_tax"]. Zwill stores those predictions under baseline:conditional-embedding and computes exactly the same NLL, Brier, p(actual), and top-1 fields used for the language-model twins.

Read the twin-versus-XGBoost result

Representative completion output: status: ok, baseline.model_type: xgboost, baseline.training_rows: 1000, baseline.prediction_rows: 100, bootstrap.resamples: 2000, and paths for report.html, report_data.json, bootstrap.json, bootstrap-intervals.svg, calibration.svg, leakage_audit.json, and manifest.json. A missing required baseline or failed leakage step makes the command fail instead of yielding a partial success.

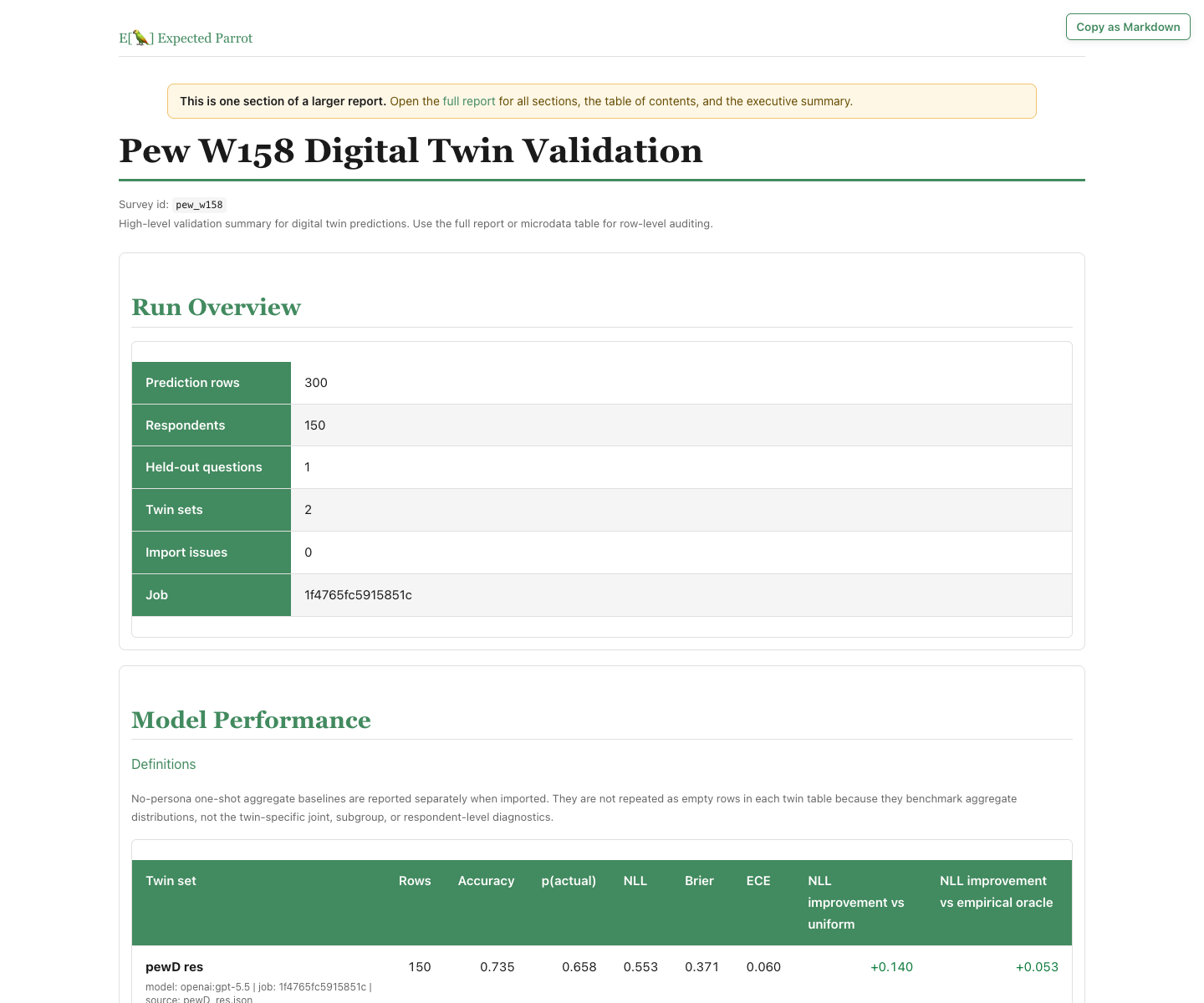

Open zwill_work/report_out/validation/report.html. Unlike the earlier one-job report, its model summary contains both the language-model twin and baseline:conditional-embedding. The respondent-level table also includes XGBoost rows, so you can see whether both methods fail on the same people or in different ways.

The validation command also resamples respondents to estimate paired bootstrap intervals for the difference between each twin model and XGBoost. Those results are in zwill_work/report_out/validation/bootstrap.json. For p(actual) and top-1, higher is better; for NLL and Brier, lower is better. Interpret the direction of each twin-minus-baseline difference accordingly, and do not claim an improvement when its uncertainty interval includes zero.

Results from the completed tutorial run

NLL was declared as the primary metric before export. On that metric, the twin produced meaningfully better probabilities than XGBoost: its paired interval clears zero in the favorable, negative direction. The methods had nearly identical top-1 accuracy, so the gain came from probability quality rather than getting more binary choices correct. The leakage audit examined all five context–target pairs and flagged none.

zwill next --survey pew_w158

Run zwill next after validation and follow any remaining audit, sample-size, or approval steps it reports before treating the evidence as complete.

11 Read the evidence

Run zwill guide show interpreting-results before writing conclusions. Lower NLL and Brier scores are better. Accuracy is useful as a sanity check, but the headline is the paired difference against the conditional baseline.

For this run, the NLL metric prespecified in the approved plan passes the table’s comparison gate: −0.186 [−0.370, −0.034] against XGBoost. This is not a public preregistration: the tutorial target was chosen while developing the example. The Brier interval barely crosses zero, while p(actual) and top-1 remain inconclusive. That is mixed but useful evidence: the twin assigned probabilities better on the primary scoring rule without improving classification accuracy.

Also inspect calibration, individual failures, malformed-row rate, and marginal fit. Expected calibration error (ECE) groups predictions by confidence and compares average confidence with observed frequency; lower is better. The twin’s ECE in this run was 0.0446, but a single small binary sample can make calibration estimates unstable, so inspect the calibration plot and confident misses as well. The empirical marginal is an oracle benchmark because the target distribution has already been observed; it is not deployable for a genuinely new target.

12 Assemble the evidence and author the report

Zwill’s responsibility ends with a rich, auditable evidence package. It should calculate the metrics, retain respondent-level predictions and raw model evidence, document the study design, fit the baselines, run the leakage and bootstrap analyses, and expose all of that in structured files. It should not decide the final narrative or send a second EDSL job to a model to write one.

Build the evidence package

zwill report build --survey pew_w158 --path report_out \
  --job-id <twin_job_id> \
  --probability-job-id <probability_job_id>

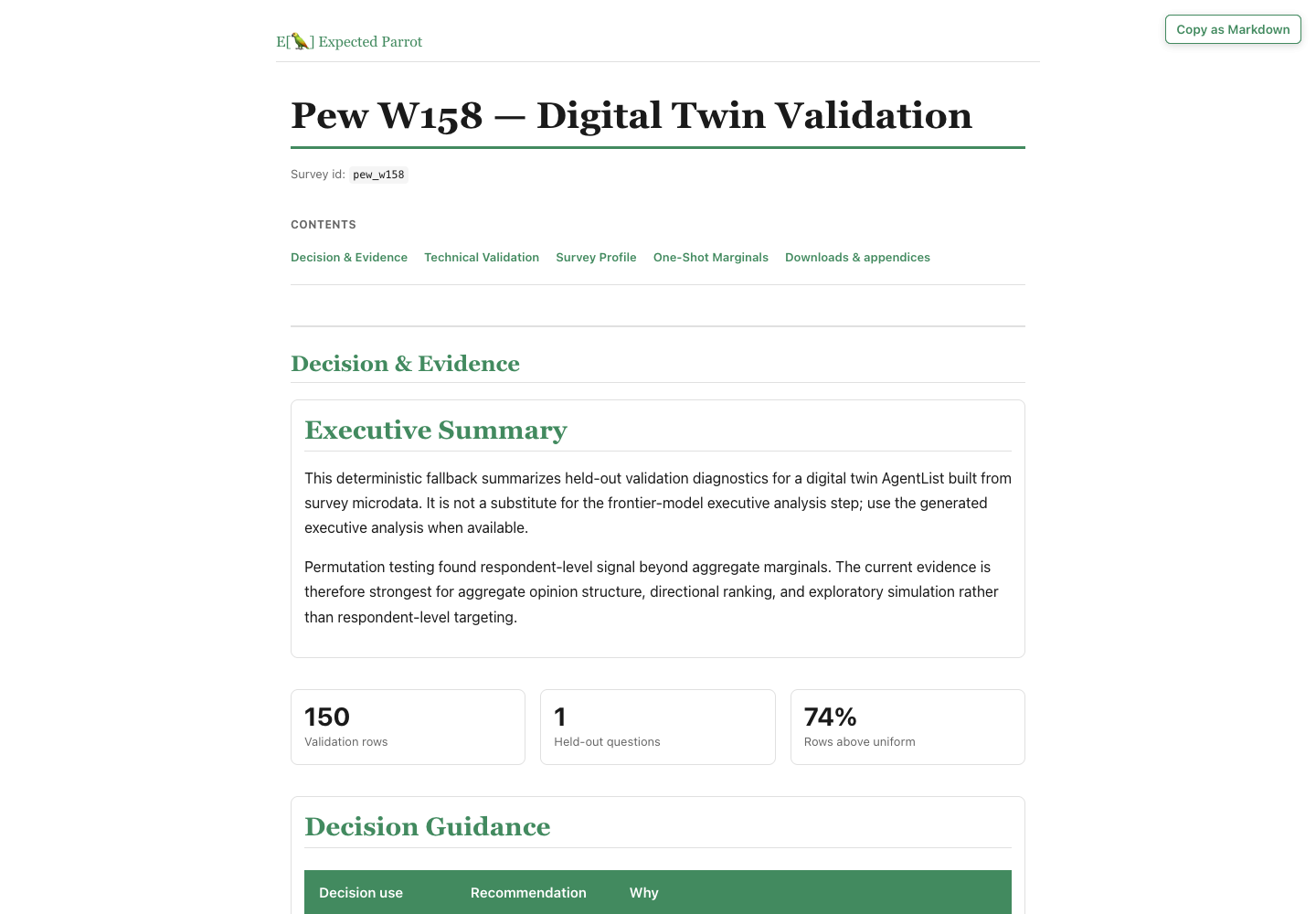

This command assembles the survey profile, one-shot results, twin scores, run audit, and available diagnostics into zwill_work/report_out/. Because validation was written to zwill_work/report_out/validation/, zwill detects that bundle and links its XGBoost comparison, bootstrap intervals, leakage audit, and structured evidence from the consolidated index. The result is one publishable evidence tree rather than two disconnected folders.

What the structured evidence looks like

The HTML is for inspection; JSON is what lets a coding agent trace claims without scraping a page. For example, a compact summary of this tutorial’s completed run looks like this. The complete package keeps more detail, including respondent rows, calibration bins, every bootstrap comparison, and the audit pairs.

{
  "survey": "pew_w158",
  "heldout_question": "carbon_tax",
  "respondents": 100,
  "twin": {
    "model": "openai:gpt-5.5",
    "negative_log_likelihood": 0.5129,
    "top1_accuracy": 0.7621,
    "expected_calibration_error": 0.0446
  },
  "conditional_baseline": {
    "model_type": "xgboost",
    "negative_log_likelihood": 0.6984
  },
  "primary_comparison": {
    "metric": "negative_log_likelihood",
    "twin_minus_xgboost": -0.1855,
    "confidence_interval_95": [-0.3695, -0.0343]
  },
  "leakage_audit": {"pair_count": 5, "flagged_count": 0}
}

Open the complete tutorial evidence-summary JSON. An agent should verify the primary comparison’s direction and interval, confirm that the leakage audit is clean, and then use the respondent-level and calibration files to look for important failures before drafting prose.

Have the coding agent write the final narrative

The coding agent should read those artifacts, decide which facts matter for the intended audience, and author the final HTML or Markdown report directly. That is a reasoning and communication task: it requires reconciling the clean leakage audit, the significant NLL advantage over XGBoost, the inconclusive accuracy comparison, the one-question scope, and the intended decision use. A generic generated paragraph cannot make those judgments reliably.

Ask the agent to keep every substantive claim traceable to a named artifact or reported value. The final report should explain the survey and holdout design, translate the metrics into plain language, compare the twins with XGBoost, discuss individual failures and calibration, state what the pilot supports, and distinguish that from what would require a larger multi-question study.

Publish the agent-authored report together with—or linked to—the technical evidence package. Readers should be able to move from the conclusion back to the validation table, bootstrap interval, leakage result, and underlying study design.

13 Scale from one target to a real study

The carbon-tax example teaches the mechanics, but one question cannot establish that twins work across a survey. A serious validation should hold out several questions chosen before inference. Select items that span different content, base rates, and levels of difficulty; record every eligible item considered and explain exclusions.

zwill twin-experiment init-plan --survey pew_w158 \
  --plan-id climate_policy_v2 \
  --heldout-questions tree_planting,carbon_tax,carbon_capture_credit,zero_carbon_power,methane_leaks \
  --sample-respondents 100 --seed 20260721 --stratify-actual \
  --context-question-count 5 \
  --model openai:gpt-5.5 --primary-metric nll \
  --path climate_policy_v2.json

zwill twin-experiment validate --input-path climate_policy_v2.json
zwill twin-experiment approve --input-path climate_policy_v2.json
zwill twin-experiment export-plan --input-path climate_policy_v2.json \
  --output-dir climate_policy_v2_jobs

init-plan creates an editable specification, validate resolves the question names and prediction count, and approve records that the design was reviewed before model results were visible. Export then creates the .ep jobs and a manifest. Inspect the manifest and confirm that its scenario count still matches the approved count before running anything. Open the example draft plan JSON.

Multi-target validation unlocks evidence the one-question pilot cannot provide: per-question forest plots, marginal rank-order accuracy, cross-question attenuation, joint-structure checks, and a leakage matrix across every context–target pair. Report heterogeneity rather than hiding it in one grand mean—a model that works on four easy policy items and fails on a fifth has taught you something important.

14 Compare models and prompt constructions

Zwill treats model choice and prompt design as experiments, not as invisible tuning. A reusable approach records how the twin is constructed. An experiment plan crosses those approaches with models on the same respondents and held-out targets.

Define two prompt approaches

zwill twin-approach scaffold --survey pew_w158 --approach-id survey_only \
  --path approaches/survey_only.json
zwill twin-approach scaffold --survey pew_w158 --approach-id survey_plus_notes \
  --include-agent-material --tag context-ablation \
  --path approaches/survey_plus_notes.json

zwill twin-approach add --survey pew_w158 \
  --input-path zwill_work/approaches/survey_only.json
zwill twin-approach add --survey pew_w158 \
  --input-path zwill_work/approaches/survey_plus_notes.json
zwill twin-approach diff --survey pew_w158 \
  --left survey_only --right survey_plus_notes

Reusable approaches vary construction inputs such as context selection, metadata, supplemental material, and models. The example below is an ablation for a richer study that has first imported respondent notes with agent-material add; on the teaching excerpt, which has no such notes, the arms would be identical. Prompt pipelines are a complementary experiment: a pipeline such as examples/twin_pipelines/dialectical.json is an ordered set of EDSL questions. An early step can weigh evidence, and the final step returns the scoreable probability distribution. Zwill preserves intermediate reasoning for audit but scores only the final answer.

zwill edsl build --survey pew_w158 --target twin-probability-job \
  --heldout-question carbon_tax --sample-respondents 100 --seed 42 \
  --twin-prompt-pipeline examples/twin_pipelines/dialectical.json \
  --model openai:gpt-5.5 --allow-unapproved \
  --path dialectical_jobs.ep

# After running and importing matched raw and pipeline jobs:
zwill twin-experiment record --survey pew_w158 \
  --experiment-id carbon_prompt_ab --job-id <raw_job_id> \
  --approach raw --primary-metric nll
zwill twin-experiment record --survey pew_w158 \
  --experiment-id carbon_prompt_ab --job-id <pipeline_job_id> \
  --approach dialectical --primary-metric nll

For a real comparison, put reusable construction approaches and every model in the approved plan. Record custom pipeline jobs under one experiment ID after import. In both cases, keep the sample and seed fixed so differences are paired.

{
  "defaults": {
    "sample_respondents": 100,
    "seed": 20260721,
    "model": ["openai:gpt-5.5", "google:gemini-2.5-pro"]
  },
  "arms": [
    {"approach_id": "survey_only"},
    {"approach_id": "survey_plus_notes"}
  ]
}

Those fields are the relevant excerpt from the plan, not a second complete plan file. With five targets, the design now requests 100 × 5 × 2 × 2 = 2,000 predictions. Run validate again, inspect the revised count and estimated cost, and obtain a new approval before export.

zwill twin-experiment bundle --survey pew_w158 \
  --plan-id climate_policy_v2 --metric nll \
  --output-dir report_out/experiment

zwill twin-experiment dashboard --survey pew_w158 \
  --plan-id climate_policy_v2 --path report_out/experiment/dashboard.html
zwill twin-experiment compare --survey pew_w158 \
  --experiment-id climate_policy_v2 \
  --metric nll
zwill twin-experiment microdata --survey pew_w158 \
  --experiment-id climate_policy_v2 \
  --path report_out/experiment/microdata.html

The comparison ranks arms on the declared metric; the dashboard summarizes them; the microdata page reveals which respondents each approach helped or harmed. A reasoning prompt earns its extra calls only if it improves held-out scores or calibration—not because its prose sounds thoughtful.

15 Use the full diagnostic package

The validation report answers whether a particular run beats its baselines. The broader evidence package asks additional questions: Does the twin preserve question ordering? Does it add individual signal? Are gains concentrated among a few respondents? Does it reproduce relationships among answers?

zwill report facts --survey pew_w158 --path report_out
zwill report analyze --survey pew_w158 --path report_out \
  --job-id <twin_job_id> --probability-job-id <probability_job_id>
zwill report render --survey pew_w158 --path report_out \
  --job-id <twin_job_id> --probability-job-id <probability_job_id>

These artifacts appear in both human-readable pages and machine-readable files under zwill_work/report_out/analysis/ and zwill_work/report_out/data/. The report catalog and manifests tell an agent which files are ready and where each value came from.

Optional marginal calibration

zwill twin-results calibrate-marginal --survey pew_w158 \
  --job-id <twin_job_id> --questions carbon_tax \
  --target probability-job --target-job-id <probability_job_id> \
  --output-job-id twin_calibrated_to_one_shot

zwill twin-results compare-report --survey pew_w158 \
  --jobs <twin_job_id>,twin_calibrated_to_one_shot \
  --format html --path report_out/calibration-comparison.html

This adjusts person-level distributions so their aggregate matches the chosen target while retaining as much individual ordering as possible. Calibration to a one-shot forecast can be deployable if that forecast would truly be available. Calibration to the observed empirical marginal is an oracle sensitivity analysis and must never be presented as out-of-sample performance.

16 Add covariates and supplemental evidence responsibly

The teaching excerpt deliberately omits demographics. In a real panel, readable respondent metadata—such as age group, region, or party identification—can be legitimate predictive context for both the twin and XGBoost. Zwill includes respondent metadata by default and renders it as a separate profile block.

{"respondent_id":"r_001","metadata":{
  "age_group":"50–64",
  "region":"Midwest",
  "party_identification":"Independent"
}}

Expand source codes before import: "age_group":"50–64" is meaningful evidence, while "F_AGECAT":4 is not. Use exclusions when a field is an identifier, downstream outcome, proxy for the held-out answer, or inappropriate for the intended deployment.

zwill edsl build --survey <survey> --target twin-probability-job \
  --heldout-questions <q1,q2> \
  --exclude-metadata-key panelist_id \
  --exclude-metadata-key target_followup \
  --model openai:gpt-5.5 --approved-plan study.json \
  --path twin_jobs.ep

For richer qualitative evidence, agent-material and --twin-material can attach approved interview notes or other respondent-specific context. Cap its length, retain its provenance, audit rendered prompts, and run an ablation against a survey-only approach. More context is not automatically better.

Reuse respondents as an EDSL AgentList

Digital-twin validation asks whether agents predict answers that are already known. After that validation, zwill can also export the constructed respondents as a durable EDSL AgentList.ep and ask them a genuinely new question. Keep this prospective exercise separate from the held-out validation evidence.

zwill edsl build --survey pew_w158 --target agent-list \
  --path pew_w158_agents.ep
zwill agent-list inspect --input-path pew_w158_agents.ep

zwill agent-study export --agent-list pew_w158_agents.ep \
  --question-name new_policy --question-type multiple_choice \
  --question-text "Would you favor this new proposal?" \
  --question-option Favor --question-option Oppose \
  --model openai:gpt-5.5 --path new_policy_jobs.ep
ep run new_policy_jobs.ep --output new_policy_results.ep
zwill agent-study import --input-path new_policy_results.ep
zwill agent-study report --format html --path report_out/new-policy.html

The resulting forecast is an application of the validated construction, not additional validation: there is no observed answer for scoring. State that distinction prominently whenever prospective agent-study results are published.

17 Recover failures and deliver reproducible artifacts

Retry only malformed model rows

Provider hiccups should not silently shrink the scored sample or force an expensive full rerun. If import reports malformed rows, build a retry job from the original package, run it, and merge only the recovered scenarios.

zwill twin-results retry-malformed --survey pew_w158 \
  --job-id <twin_job_id> --job twin_jobs.ep \
  --path retry_jobs.ep
ep run retry_jobs.ep --output retry_results.ep
zwill twin-results import --survey pew_w158 \
  --job-id <twin_job_id> --merge \
  --input-path retry_results.ep

Resolve ingestion problems explicitly

zwill quarantine list --survey pew_w158
zwill quarantine resolve --survey pew_w158 --issue-id <issue_id> \
  --action resolve \
  --note "Mapped source code 4 to 50–64 from the published codebook"
zwill commit --survey pew_w158

Quarantine keeps unknown codes, invalid options, and incomplete records visible. Resolve the source problem and record what changed; do not simply suppress an issue to reach the model-running stage.

Export, package, and automate

zwill twin-results export --survey pew_w158 --job-id <twin_job_id> \
  --format long --path predictions-long.csv
zwill twin-results export --survey pew_w158 --job-id <twin_job_id> \
  --format wide --path predictions-wide.csv
zwill twin-results package --survey pew_w158 --job-id <twin_job_id> \
  --path predictions.csv --zip-path predictions.zip

zwill workflow dry-run study-workflow.json
zwill workflow explain study-workflow.json
zwill workflow run study-workflow.json

Long CSV is best for analysis; wide CSV is convenient for respondent-level joins; the ZIP is a portable delivery artifact. Declarative workflows make repeated builds inspectable: always dry-run and explain them before execution. For very large true-holdout studies, twin-study export-holdout creates chunked jobs so failures and reruns stay bounded.

18 Validate numeric, ranking, and open-ended targets

The main gate handles closed-ended choices. Zwill routes other question types through scoring rules appropriate to what the model predicts.

Numeric questions: predict quantiles

zwill edsl build --survey <survey> --target numeric-twin-job \
  --heldout-question household_income --allow-unapproved \
  --path numeric_jobs.ep
ep run numeric_jobs.ep --output numeric_results.ep
zwill numeric-results import --survey <survey> \
  --input-path numeric_results.ep
zwill numeric-results report --survey <survey> --job-id <job_id> \
  --format html --path report_out/numeric.html

The twin returns p05, p25, p50, p75, and p95 rather than category probabilities. Read pinball loss, CRPS, and interval coverage against a marginal-quantile climatology baseline.

Ranking and MaxDiff: predict utility

zwill edsl build --survey <survey> --target rank-utility-twin-job \
  --rank-task-id priorities --allow-unapproved --path rank_jobs.ep
ep run rank_jobs.ep --output rank_results.ep
zwill twin-results import --survey <survey> --input-path rank_results.ep
zwill twin-results rank-report --survey <survey> \
  --rank-task-id priorities --format html \
  --path report_out/rank-priorities.html

Declare a stable rank_task_id during import. Rank tasks have their own leakage and partial-ranking rules and are intentionally not folded into the multiple-choice headline gate.

Open text: derive themes, then validate the coded target

zwill edsl build --survey <survey> --target open-codebook-job \
  --heldout-question climate_concern_text --n-themes 8 \
  --model openai:gpt-5.5 --path codebook_jobs.ep
ep run codebook_jobs.ep --output codebook_results.ep
zwill open-coding codebook-import --survey <survey> \
  --input-path codebook_results.ep

zwill edsl build --survey <survey> --target open-coding-job \
  --heldout-question climate_concern_text --model openai:gpt-5.5 \
  --path coding_jobs.ep
ep run coding_jobs.ep --output coding_results.ep
zwill open-coding import --survey <survey> \
  --input-path coding_results.ep \
  --coded-question-name climate_concern_theme

The first job proposes a codebook; the second applies one theme consistently to every answer. Inspect theme coverage and the unclassified rate, then validate climate_concern_theme as an ordinary multiple-choice holdout. The coding model and twin model solve different tasks, so preserve both artifacts.

19 From tutorial to a defensible study

1. Use the complete documented survey rather than the 100-person teaching excerpt, and include readable codebook-expanded covariates when they are legitimate predictors.
2. Select 5–10 defensible held-out questions and declare leakage exclusions.
3. Create and approve a twin-experiment plan with sample, seed, models, approaches, cost, outputs, and decision criteria.
4. Prefer at least 200 scored respondents—or all eligible respondents when fewer exist—and flag sparse options and subgroups.
5. Compare prompt or model variants through the same gate; do not choose a winner from a bare run.

# The two commands to keep using throughout the study:
zwill guide
zwill next --survey <survey_name>

zwill also supports numeric targets through quantile predictions, ranking and MaxDiff batteries through a separate rank-utility flow, and open-ended targets by first coding responses into themes. The bundled guide routes each question type to its proper validation workflow.
